Detection Zones |
33 zones (left, right and center); visual and audible alarms with a built-in dry contact alarm relay
|
20 independent zones; visual and audible alarms
|
Multi-Unit Synchronization |
Synchronization with wired AC power lines or with manual frequency selection for wireless operation
|
Synchronization with wired AC power lines or with manual frequency selection for wireless operation. Auto frequency scan for wireless operation
|
Visual Displays |

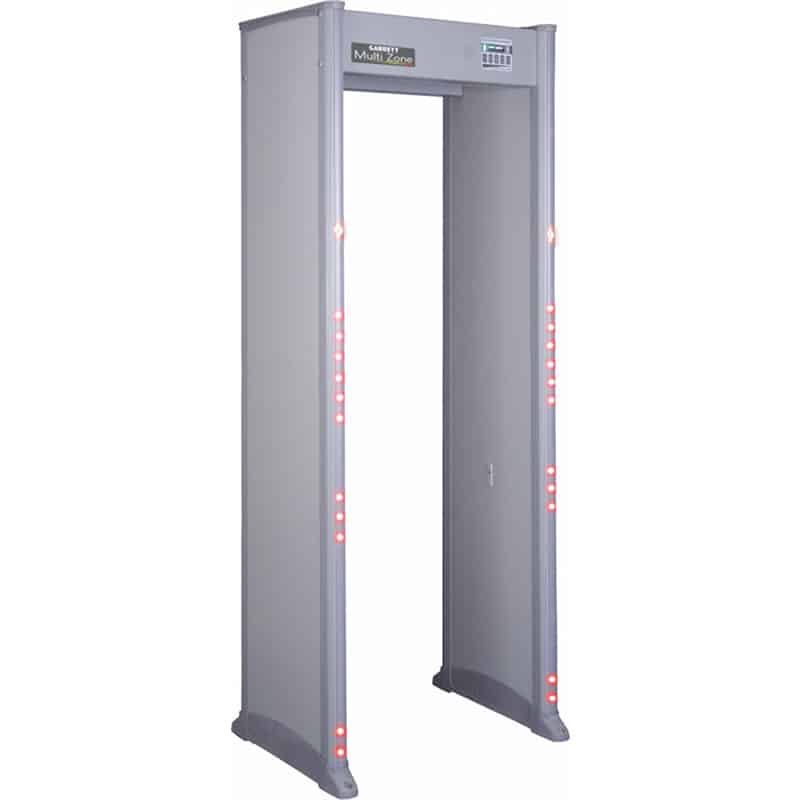

LED zone indicator lights on both panels. Pace lights on entry side only, with intuitive images.
|
LED zone indicator lights on both panels. Status lights are individually configurable as pace lights, ready/alarm lights or disabled.
|
Access Control |

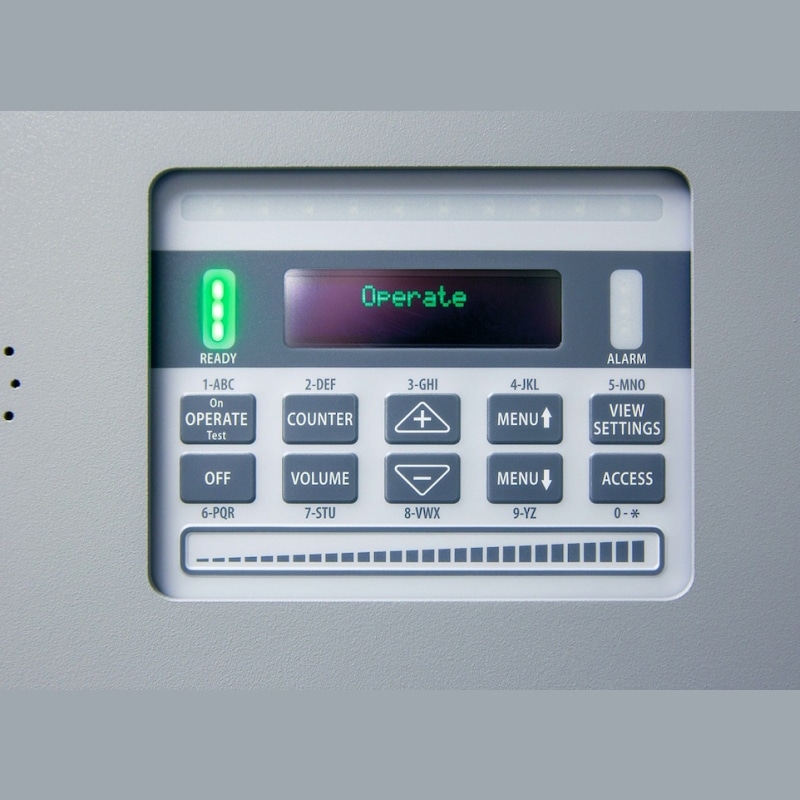

Eight-button keypad with numerical codes. Keypad lock to control access and to enable/disable the keypad.
|
Ten-button operation with full alpha-numeric 5-digit access code. Enable and disable keypad function with a rocker switch locked inside the detector head.
|
Passageway Interior Size |
Width 30" (0.76 m)
Height 80" (2.03 m)
Depth 23" (0.58 m)
(32” versions are also available)
|
Width 30" (0.76 m)
Height 80" (2.03 m)
Depth 23" (0.58 m)
(32” versions are also available)
|
Overall Exterior Size |
Width 35" (0.90 m)
Height 87" (2.21 m)
Depth 23" (0.58 m)
|
Width 35" (0.90 m)
Height 87" (2.21 m)
Depth 23" (0.58 m)
|
Shipping Size |
Width 35.5" (0.90 m)
Height 91.5" (2.32 m)
Depth 6.25" (.16 m)
|
Width 35.5" (.90 m)
Height 91.5" (2.32 m)
Depth 6.25" (.16 m)
|
Shipping Weight |
165 lbs. (74 kg)
|
151 lbs. (68.5 kg)
|
Operating Temperatures |
-4º F (-20º C) to +149º F (65º C); Humidity to 95% non-condensing.
|
-4º F (-20º C) to +140º F (60º C); Humidity to 95% non-condensing.
|
Power |
Fully automatic 100 to 240 VAC, 50 or 60 Hertz, 45 watts; no rewiring, switching or adjustments needed.
|
Fully automatic 100 to 240 VAC, 50 or 60 Hertz, 40 watts; no rewiring, switching or adjustments needed. 1-hour backup battery included for the MultiZone.
|
Regulatory Information |
Meets international airport standards such as TSA, ECAC, STAC, AENA, CJIAC, DFT. Meets additional standards and requirements such as USMS, NIJ-0601.02, NILECJ. Meets Electrical Safety and Compatibility Requirements for CE, FCC, CSA, IEC, ICNIRP, IEEE.
|
Meets Electrical Safety and Compatibility Requirements for CE, FCC, CSA, IEC, ICNIRP and IEEE. Additional certifications pending.
|
Weatherproofing |
Meets IP 55, IP 65, IEC 529 Standard for moisture, foreign matter protection
|
Meets IP 55, IEC 529 Standard for moisture, foreign matter protection
|
Construction |
Attractive scratch and mar-resistant laminate. Detection Heads and Support: heavy duty aluminum.
|
Attractive scratch and mar-resistant laminate. Detection Heads and Support: heavy duty aluminum.
|
Control Outputs |
Solid state switches (low voltage AC or DC) for operating external alarms and control devices.
|
Optional Relay module connected via RS 485 cable provides NO/NC relay contact
|
(optional) Remote Control |
Desktop Remote Control with Zone Indication; personal computer with wired or wireless iC Module; or IR remote
|
Desktop Remote Control with Zone Indication; personal computer with wired or wireless iC Module; or IR remote
|
(optional) Networking |
Manage individual or groups of walkthroughs and perform statistical analysis of throughput with wired or wireless iC Module and client software.
|
Manage individual or groups of walkthroughs and perform statistical analysis of throughput with wired or wireless iC Module and client software.
|
